This page reports that when I disconnected the Bell wire at my master socket faceplate, My ADSL connection downloads went from a disappointing 136 kbs to a very acceptable 5250 kbs Downstream and ~4000kbps download.
Here is the main page.

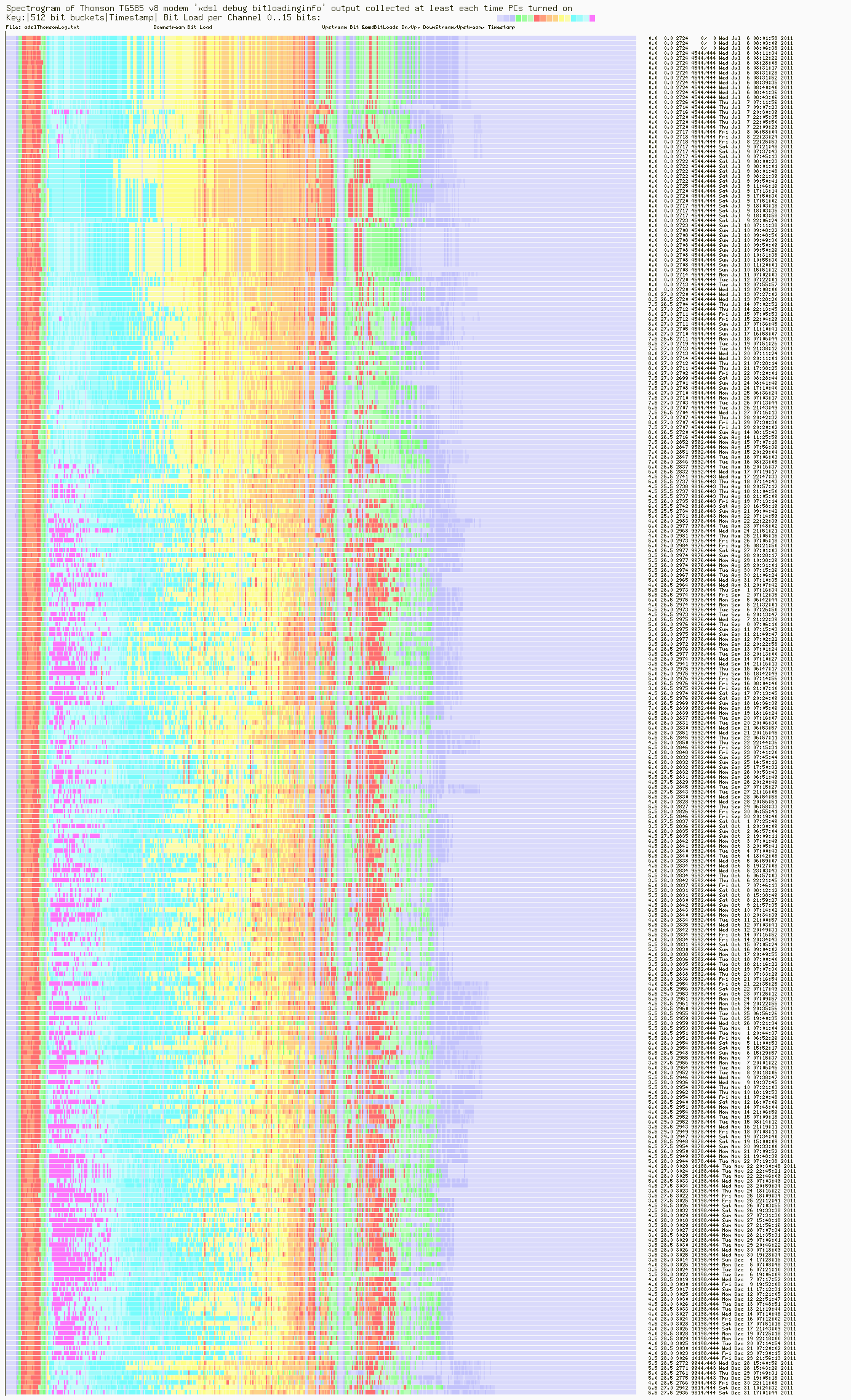

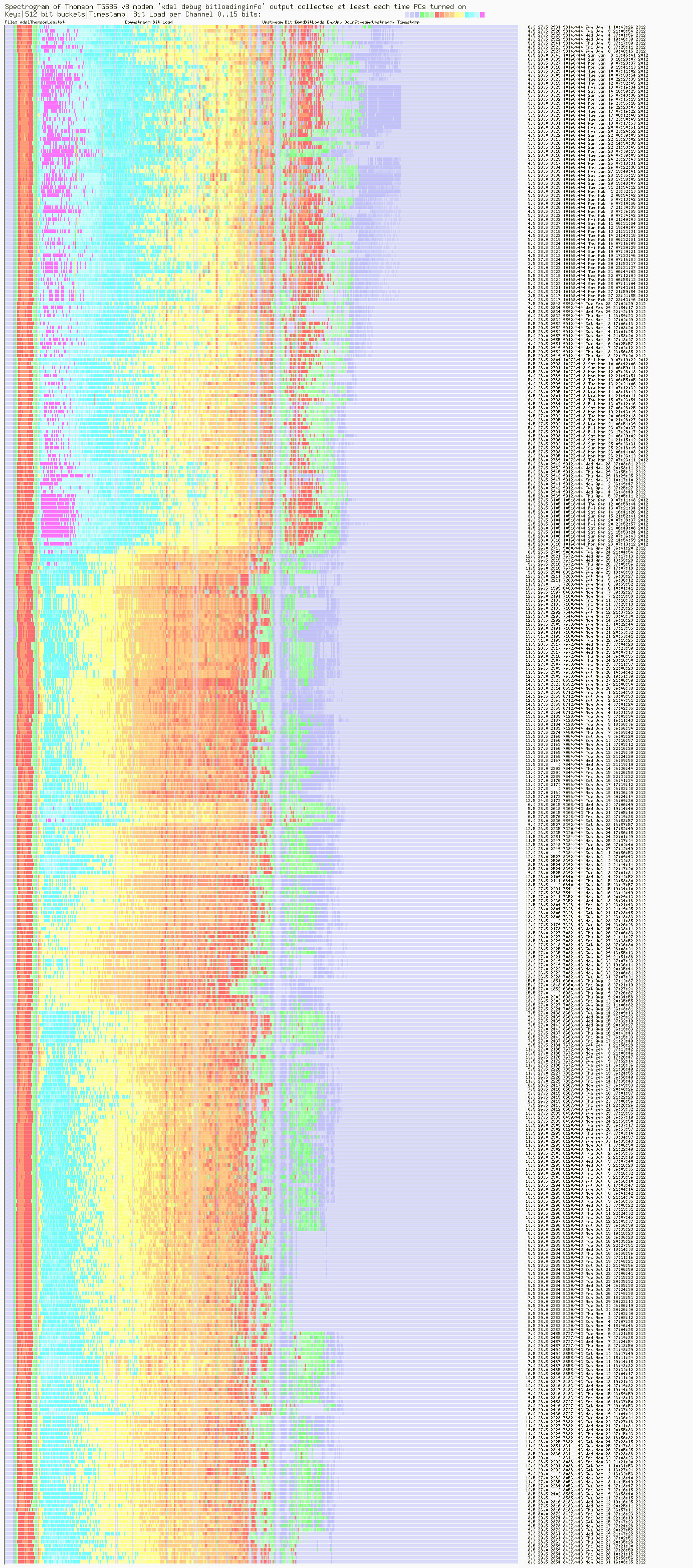

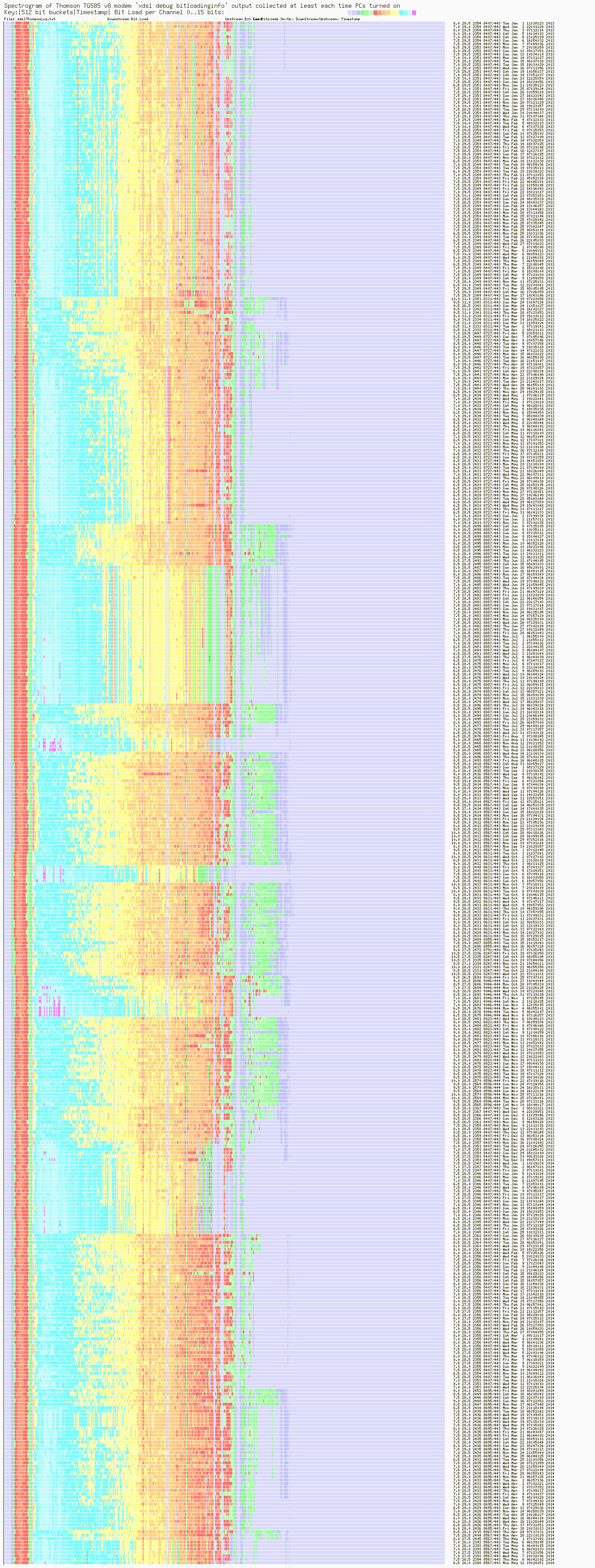

Below is a spectrogram of the results of "xdsl info" and "xdsl debug bitloadinginfo" captured by Perl script output from Thomson TG585 v8 ADSL router. I have a Perl script to poll the ADSL modem each time I turned on my PC and when I wanted. I telnet onto the modem and run the commands and log the output. I use a LUA script to generate the graphic files below.
Latest Measurement: script.
Latest Spectrogram: script.
On about 19th June 2011 I upgraded my ADSL modem to eTEC Model Name: 8411G . The Upstream / downstream speeds of were 444/ 9866 kbps
System -------------------------------------------------------------------------------- Model Name: 8411G System UpTime: 12 min Software Version: 8411G_ETC_050407.02FA UI Version: 1.001 Firmware Version: 1.3.8 DSP Version: 2.7.1.8 DSL -------------------------------------------------------------------------------- DSL Status: SHOWTIME.L0 ADSL2+ Upstream Speed: 444 kbps (Fast) Downstream Speed: 9866 kbps (Fast) LAN --------------------------------------------------------------------------------
On about 5th July 2011 I have upgraded my ADSL modem to Plusnet's Standard Issue. The Upstream / downstream speeds of were pretty good but have stuck at 444 / 4544 kbps
NOTE: 01/07/2011 I have signed up to "a Broadband trial for TV services", and upgraded to the Plusnets standard issue modem Thomson TG585 v8 Plusnet 8.2.7.8.DA. On 5th July 2011 I have upgraded my ADSL modem to Plusnet's Standard Issue and found how to extract the data for these plots. The Upstream / downstream speeds of were pretty good but have stuck at 444 / 4544 kbps. Hopefully this is due to the many outages due to replacing the ADSL modems.
If you have found this useful or want to make a comment please add to my blog: ADSL BLOG
Typical Output:
"xdsl info";
"xdsl debug bitloadinginfo";
============================================
starting:Tue Jul 5 08:24:13 UTC+0100 2011
============================================
=================================================
====== ?
------------------------------------------------------------------------
______ Thomson TG585 v8
___/_____/\
/ /\\ Plusnet 8.2.7.8.DA
_____/__ / \\
_/ /\_____/___ \ Copyright (c) 1999-2010, THOMSON
// / \ /\ \
_______//_______/ \ / _\/______
/ / \ \ / / / /\
__/ / \ \ / / / / _\__
/ / / \_______\/ / / / / /\
/_/______/___________________/ /________/ /___/ \
\ \ \ ___________ \ \ \ \ \ /
\_\ \ / /\ \ \ \ \___\/
\ \/ / \ \ \ \ /
\_____/ / \ \ \________\/
/__________/ \ \ /
\ _____ \ /_____\/
\ / /\ \ /___\/
/____/ \ \ /
\ \ /___\/
\____\/
------------------------------------------------------------------------
{doug}
======
Modem state: up
Up time (Days hh:mm:ss): 0 days, 23:13:05
xDSL Type: ADSL2+
Bandwidth (Down/Up - kbit/s): 4544/444
{doug}
======
Tone : # Bits per tone
0 : 0 0 0 0 0 0 0 0 2 2
10 : 4 4 6 6 6 7 7 7 7 7
20 : 6 6 7 6 6 6 6 6 5 4
30 : 4 2 0 11 13 13 13 13 13 14
40 : 13 14 14 14 14 14 13 14 14 14
50 : 14 14 13 13 13 14 14 14 13 13
60 : 14 14 13 14 0 13 13 12 13 13
70 : 13 12 12 12 12 12 13 12 13 13
80 : 13 12 12 13 12 13 12 12 12 13
90 : 13 13 12 13 12 13 12 12 12 12
100 : 11 11 11 11 11 12 11 11 11 11
110 : 0 12 12 11 11 11 11 11 11 11
120 : 11 11 11 11 11 11 11 0 11 11
130 : 11 11 11 11 12 11 11 11 11 11
140 : 11 11 10 10 10 10 10 11 10 10
150 : 10 10 11 10 10 10 9 9 10 9
160 : 8 5 9 10 11 10 10 10 10 8
170 : 10 10 9 9 9 10 9 9 9 8
180 : 8 10 9 10 9 9 10 9 0 9
190 : 9 0 9 9 9 9 9 9 9 9
200 : 9 9 9 9 9 9 9 9 9 9
210 : 9 6 8 9 9 6 9 9 9 9
220 : 9 9 9 8 9 9 10 9 9 9
230 : 8 9 9 9 7 9 7 8 6 8
240 : 8 9 8 0 6 7 8 7 7 7
250 : 7 6 0 0 6 7 7 7 7 7
260 : 6 6 6 6 5 5 4 4 3 1
270 : 0 0 0 0 2 2 4 4 5 5
280 : 5 5 0 6 6 5 4 6 5 6
290 : 3 0 3 4 4 6 4 3 3 3
300 : 2 5 3 5 2 4 4 2 6 5
310 : 3 2 5 4 3 3 2 2 2 2
320 : 2 4 2 0 3 4 2 2 2 3
330 : 2 2 2 2 0 2 2 2 2 2
340 : 0 2 2 2 2 2 2 2 0 2
350 : 2 2 2 2 2 2 2 2 2 1
360 : 2 0 2 2 2 1 1 1 0 0
370 : 0 0 0 1 0 1 1 0 0 0
380 : 0 0 0 0 0 0 0 0 0 0
390 : 0 0 0 0 0 0 0 0 0 0
400 : 0 0 0 0 0 0 0 0 0 0
410 : 0 0 0 0 0 0 0 0 0 0
420 : 0 0 0 0 0 0 0 0 0 0
430 : 0 0 0 0 0 0 0 0 0 0
440 : 0 0 0 0 0 0 0 0 0 0
450 : 0 0 0 0 0 0 0 0 0 0
460 : 0 0 0 0 0 0 0 0 0 0
470 : 0 0 0 0 0 0 0 0 0 0
480 : 0 0 0 0 0 0 0 0 0 0
490 : 0 0 0 0 0 0 0 0 0 0
500 : 0 0 0 0 0 0 0 0 0 0
510 : 0 0
{doug}
